Key Points in Planning Shuttle Racking and Its Application Scenarios

In today’s highly competitive business environment, efficient warehouse management plays a crucial role in an enterprise’s successful operations. As an advanced warehousing solution, shuttle racking can significantly improve warehouse space utilization and the efficiency of goods retrieval and storage. However, to fully leverage the advantages of shuttle racking, meticulous planning is key. The following details the key considerations in planning a shuttle racking system.

1. Considerations for Warehouse Space and Layout

1.1 Accurately Measuring Warehouse Dimensions

Before planning the shuttle racking, it is essential to precisely measure the warehouse’s length, width, and height. Even the smallest error can affect the installation and layout of the racks, thereby impacting the overall performance of the storage system. It is also necessary to record the positions of internal columns, wall alignments, door and window placements, as well as the distribution of various pipes and facilities. These obstacles may restrict the arrangement of the racks and the design of aisles and must be skillfully managed during the planning process.

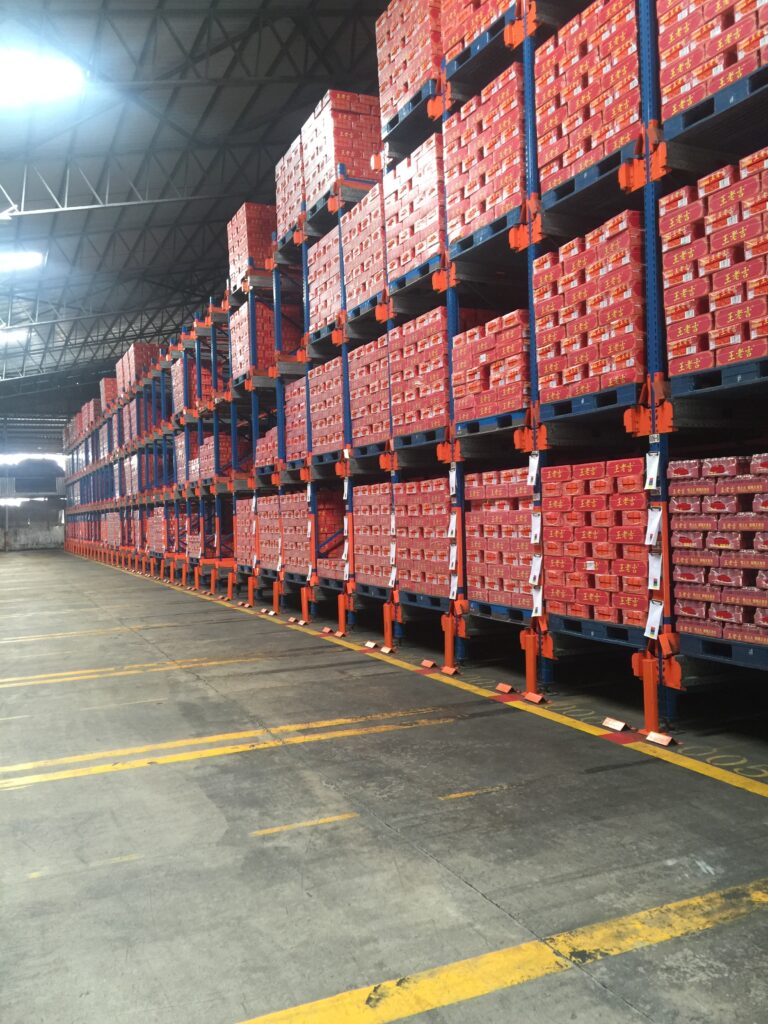

1.2 Rational Planning of Rack Layout

Based on the warehouse’s shape and dimensions, and in conjunction with the storage needs and handling processes of the goods, determine the layout of the shuttle racking. Common layout options include horizontal, vertical, and mixed layouts. A horizontal layout is suitable for warehouses with ample width and where goods are loaded and unloaded from both sides, thereby reducing the shuttle vehicle’s lateral travel distance. Conversely, a vertical layout is better for longer warehouses where goods are handled predominantly at one end, which can enhance the operational efficiency of the shuttle vehicle in the longitudinal aisle. When planning the layout, consider how the racks connect with the warehouse entrances, loading/unloading areas, and ensure smooth pathways for goods handling to minimize detours and congestion.

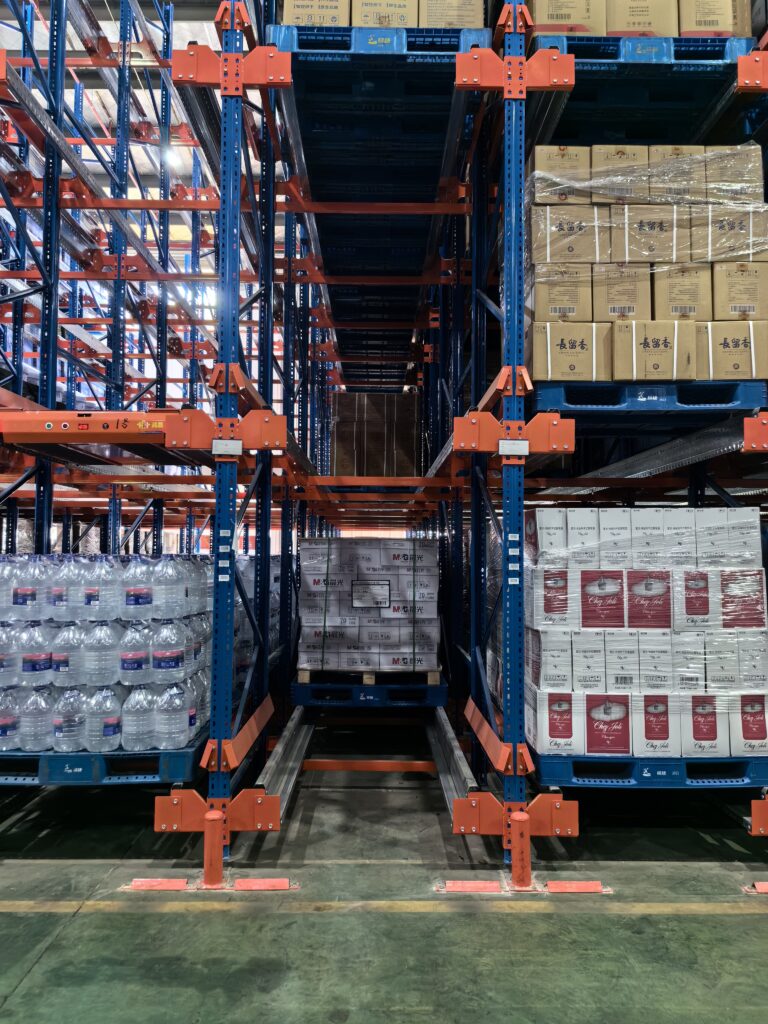

1.3 Optimizing Aisle Design

The width of the aisles between shuttle racks is a critical parameter. If the aisles are too narrow, the shuttle vehicles’ speed and maneuverability will be restricted, increasing the risk of collisions; if too wide, valuable storage space may be wasted. Generally, the aisle width should be determined based on factors such as the dimensions of the shuttle vehicle, its speed, turning radius, and the size of handling equipment (e.g., forklifts). Typically, an aisle width between 1.5 and 2.5 meters is appropriate for shuttle racking. Additionally, it is important to design both main aisles and secondary aisles appropriately. The main aisles should be wide enough to accommodate large handling equipment and a high flow of goods, while secondary aisles can be relatively narrower for the shuttle vehicles’ local movements within the rack area.

2. Analysis of Cargo Characteristics and Storage Requirements

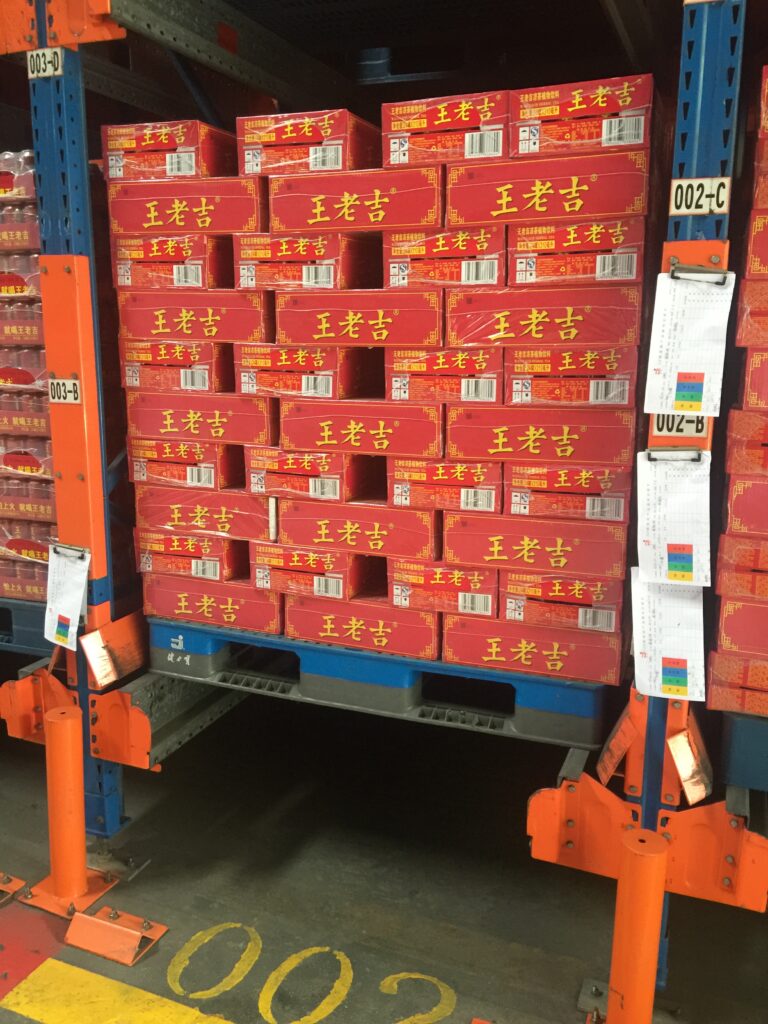

2.1 Assessment of Cargo Dimensions and Weight

A comprehensive understanding of the range of dimensions and weight distribution of the stored goods forms the foundation for planning shuttle racking. For larger goods, it is necessary to design corresponding large storage spaces or specialized rack structures to ensure smooth storage and retrieval. For heavier items, choose rack materials and components with sufficient load-bearing capacity, and strictly adhere to the rack’s design load standards. For instance, overweight goods should be stored on lower levels or in specially designed heavy-duty rack zones to avoid imposing excessive pressure on upper levels.

2.2 Goods Turnover Rate and Storage Strategy

Analyzing the turnover rate of goods is crucial for determining storage space allocation. Goods with high turnover should be placed near the shuttle vehicle exits or the warehouse’s shipping area to allow for quick access, reducing handling time. Conversely, goods with low turnover may be arranged in more remote locations. Moreover, storage strategies—such as first-in-first-out (FIFO) or first-in-last-out (FILO)—can be developed based on the type or batch of goods, helping to ensure product quality and accurate inventory management. For example, in the food and pharmaceutical industries, FIFO is typically adopted to ensure products are used within their shelf life.

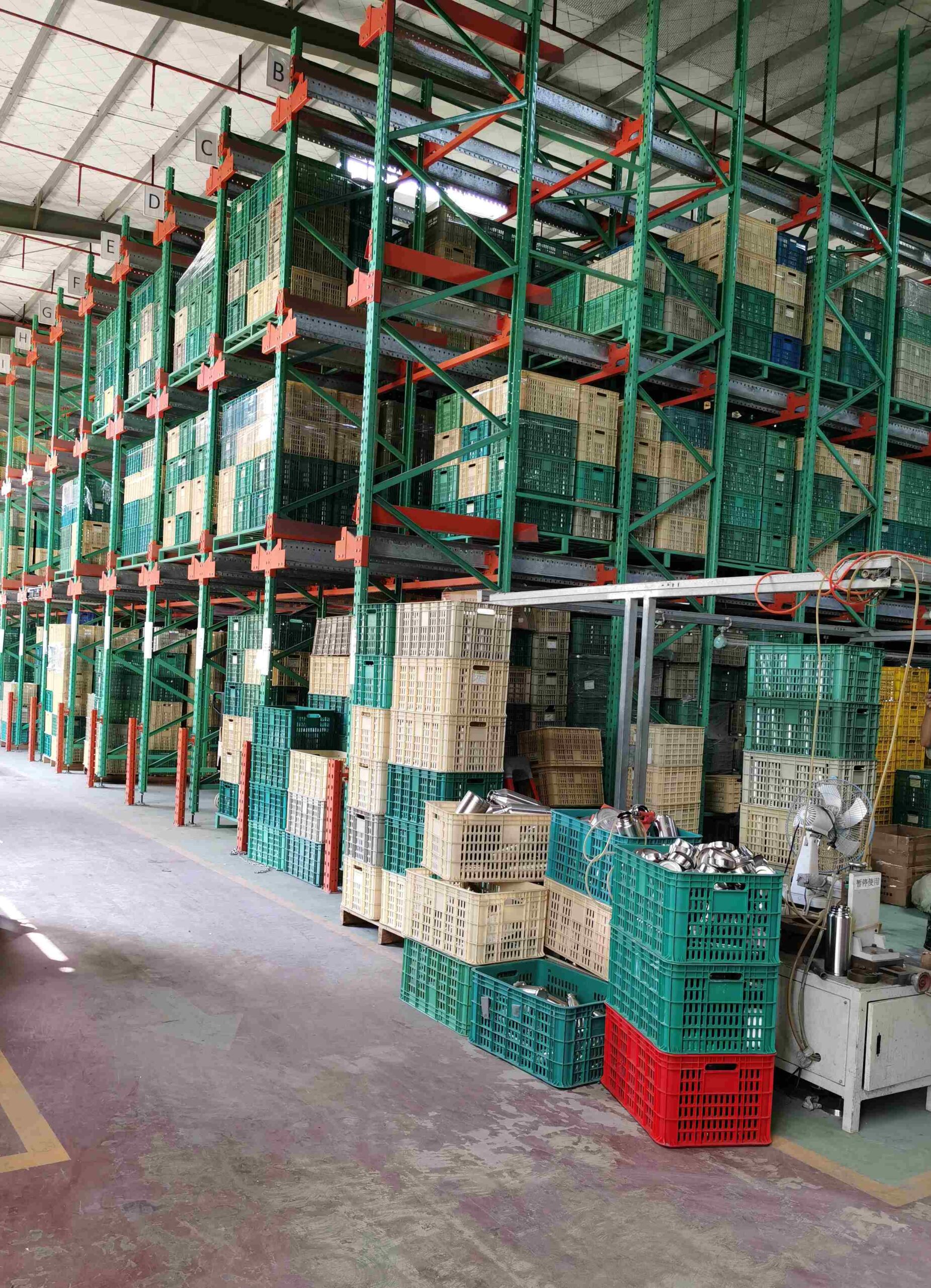

2.3 Goods Packaging and Compatibility

It is important to consider the packaging forms of the goods and their compatibility with the shuttle racking. Goods with irregular shapes or special requirements may necessitate custom storage spaces or rack accessories to prevent damage during storage and handling. Additionally, ensure that the packaging materials do not cause corrosion or other damage to the racks. This is particularly crucial in warehouses storing chemicals or corrosive substances, where appropriate protective coatings or materials for the racks should be selected.

3. Selection and Configuration of Shuttle Vehicles

3.1 Matching Load Capacity and Speed

The load capacity of the shuttle vehicle must match the weight of the goods. Selecting a shuttle vehicle with insufficient capacity may lead to an inability to handle heavier goods, whereas one with excessive capacity may result in resource wastage and increased costs. Additionally, the operating speed of the shuttle vehicle is an important factor. Higher speeds can improve the efficiency of goods retrieval and storage, but warehouse safety requirements and rack stability must also be considered. Generally, shuttle vehicle speeds range between 0.5 and 2 meters per second; the specific value should be adjusted according to the warehouse’s actual conditions and the frequency of goods handling. When determining the speed, consider the vehicle’s acceleration and deceleration, as smooth transitions help reduce goods movement and collision risks.

3.2 Positioning Accuracy and Reliability

The positioning accuracy of the shuttle vehicle directly affects the precision of goods storage and retrieval. A high-precision positioning system ensures that the shuttle vehicle accurately docks at the target storage location, reducing errors and time loss. Typically, the required positioning accuracy is within ±5 to ±10 millimeters. Moreover, the reliability of the shuttle vehicle is critical; it must operate stably under prolonged and intensive use to minimize breakdowns. When selecting a shuttle vehicle, factors such as manufacturing processes, component quality, and brand reputation should be considered, opting for products known for their reliability. Also, ease of maintenance should be taken into account so that repairs can be carried out promptly in the event of a fault.

3.3 Battery Endurance and Charging Solutions

Since shuttle vehicles are usually battery-powered, their battery endurance determines how long they can operate on a single charge. Insufficient endurance may result in frequent charging, thereby affecting work efficiency. It is important to choose a shuttle vehicle with an appropriate battery capacity based on the intensity and duration of warehouse operations. Additionally, a well-planned charging solution is necessary—for example, by setting up rapid charging zones or employing an automatic battery swapping system. When designing the charging area, ensure that the layout of the charging equipment is coordinated with the shuttle vehicle’s operating routes to avoid interference with goods handling. Furthermore, consider using a Battery Management System (BMS) to monitor and control the charging and discharging processes, thereby extending battery life and enhancing safety.

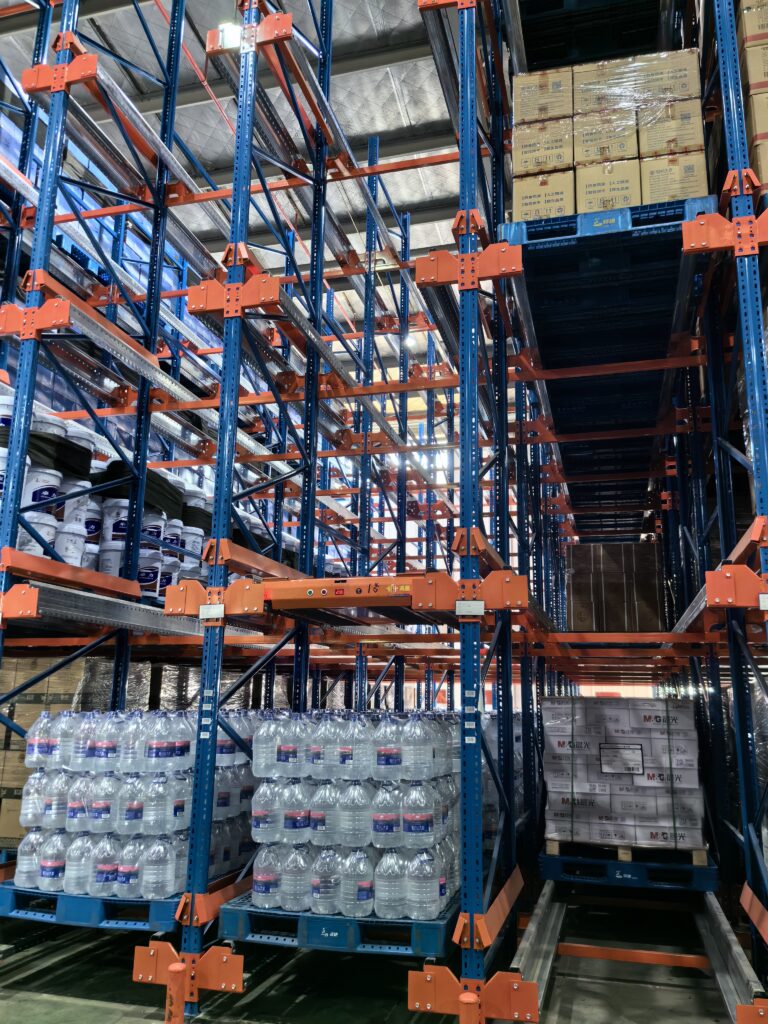

4. Rack Structure Design and Strength Calculation

4.1 Material Selection and Quality Standards

The main structural components of shuttle racking—such as columns, beams, and tracks—should be made from high-strength steel materials like Q235B or Q345B. These materials offer excellent strength and toughness, enabling them to withstand the heavy loads of goods and the impact forces generated by shuttle vehicle operation. During material procurement, strict adherence to national standards and industry norms is essential to ensure material quality. Additionally, parameters such as material thickness and dimensional accuracy must be strictly controlled to guarantee the stability and reliability of the rack structure.

4.2 Mechanical Calculations and Structural Optimization

Detailed mechanical calculations must be carried out based on factors such as the weight of the goods, the height and number of rack levels, and the operating parameters of the shuttle vehicles. These calculations determine the cross-sectional dimensions, load-bearing capacities, and deformation of components such as columns and beams, ensuring safe operation under full load. On this basis, structural optimization techniques can be applied to refine the rack’s design and layout. For example, by adjusting the spacing of beams and the arrangement of columns, material usage can be reduced and costs lowered, all without compromising the rack’s load-bearing capacity, thereby enhancing space utilization. Additionally, in areas prone to earthquakes, the rack’s seismic performance should be considered and the structure reinforced in accordance with relevant seismic design standards.

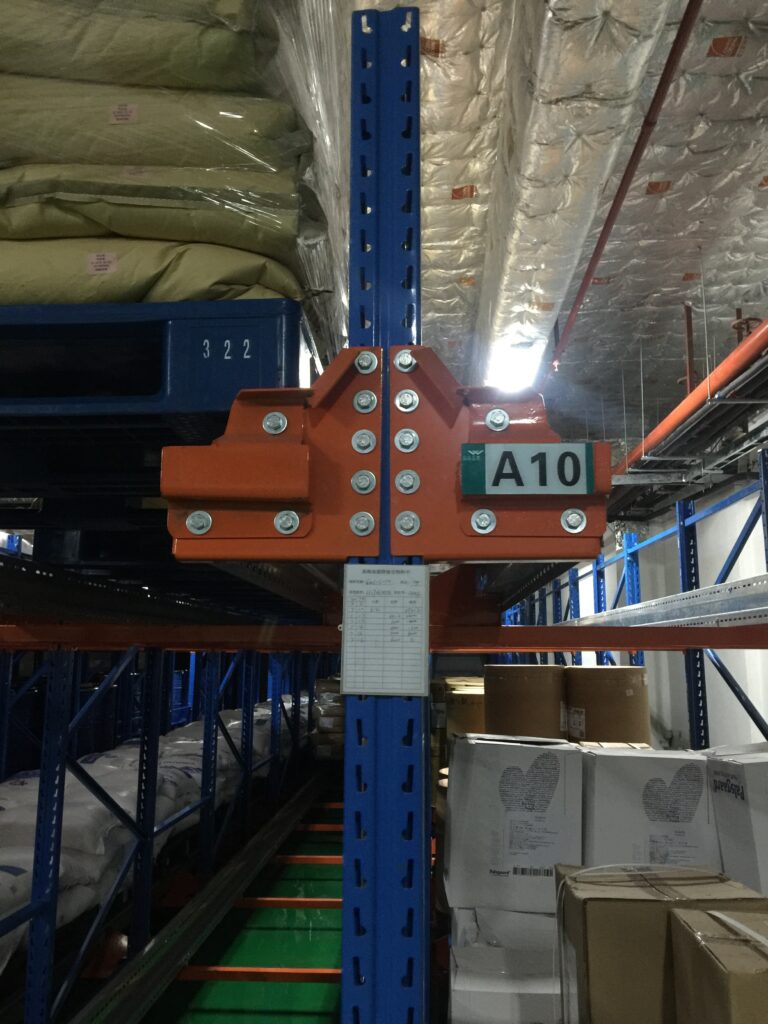

4.3 Connection Methods and Installation Techniques

The connection methods used between the rack components directly affect the overall strength and stability of the system. Common connection methods include bolted connections and welded connections. Bolted connections are convenient for installation and disassembly, making them suitable for racks that may need frequent adjustment or relocation; welded connections, on the other hand, offer higher strength and stability and are appropriate for permanent installations. During the connection process, it is imperative to strictly follow the specified procedures to ensure robust connections. For instance, the tightening torque for bolts should meet requirements, and the quality of welds must be rigorously inspected. Additionally, professional installation tools and equipment should be used during the installation process to ensure precision and quality. After installation, a comprehensive acceptance test should be conducted—including checks for verticality, horizontality, and load-bearing capacity—to ensure that the rack meets design specifications and safety standards.

5. Integration of Automated Control Systems

5.1 Integration with Warehouse Management Systems (WMS)

The automated control system for the shuttle racking should be seamlessly integrated with the enterprise’s Warehouse Management System (WMS). Through data interfaces, the WMS can send instructions for goods receiving, shipping, and inventory inquiries to the shuttle racking control system. In turn, the control system can feedback data on the operating status of the shuttle vehicles and storage locations to the WMS, enabling real-time information sharing and interaction. This integration allows for intelligent management of the entire warehousing system, thereby improving order processing speed and inventory accuracy. For example, when a new order is generated, the WMS can automatically create a sorting task based on the order details and assign it to the shuttle racking control system, which then directs the shuttle vehicles to quickly and accurately transport the goods to the designated shipping area.

5.2 Intelligent Scheduling and Path Planning for Shuttle Vehicles

The automated control system should feature intelligent scheduling capabilities for shuttle vehicles. Based on the number, location, and operating status of the shuttle vehicles in the warehouse—as well as the goods handling tasks—the system can allocate tasks efficiently to avoid conflicts and idle time, thereby enhancing vehicle utilization. Additionally, the system should be capable of path planning for the shuttle vehicles, determining the optimal routes based on the rack layout and goods locations to reduce travel time and energy consumption. For example, algorithms such as the shortest path algorithm or A* algorithm can be employed to quickly determine the most efficient route for a shuttle vehicle from its starting point to the target location within a complex rack environment. Moreover, the system should be able to dynamically adjust the paths in response to real-time operational conditions, accommodating emergencies or temporary task changes.

5.3 Monitoring and Fault Alarm Functions

The automated control system should include comprehensive monitoring capabilities to track the operating status of shuttle vehicles, battery levels, positioning data, and the status of storage locations in real time. Operators can use monitoring screens or data reports to continuously assess the performance of the warehousing system. In addition, the system should be equipped with fault alarm functionalities; in the event of a shuttle vehicle malfunction, low battery, or abnormal storage location status, it should promptly issue warning signals and provide detailed fault information to facilitate rapid troubleshooting by maintenance personnel. Furthermore, the system can record details such as the time, location, and type of fault, providing valuable data for subsequent fault analysis and equipment maintenance.

In summary, planning a shuttle racking system is a comprehensive and systematic project that requires careful consideration of warehouse space, cargo characteristics, shuttle vehicle performance, rack structure, and automated control systems. Only through scientific and rational planning can an efficient, stable, and safe shuttle racking system be established—thus providing robust support for warehouse management and logistics operations and enhancing an enterprise’s core competitiveness.
